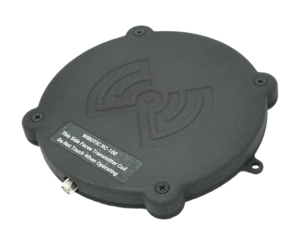

WiBotic’s antenna PCBs are designed to be as light-weight and durable as possible. The RC-100 is our standard receiver antenna and is typically quoted on a 1 to 1 basis with onboard chargers. It is connected to the onboard charger using a short coaxial cable and comes with a standard nylon plastic cover. In many cases, WiBotic can assist robot and UAV manufactures with integration of the bare RC-100 PCB directly into the robot or UAV body – thus eliminating the weight of the standard plastic enclosure.
| PCB Diameter | 3.9″ (100mm) |
| Dimensions w/Enclosure | |
| Total Width | 4.3″ (109mm) |
| Mounting Hole Distance | 2.9″ (74mm) |
| Thickness | 0.5″ (12mm) |
| Weight (PCB antenna only) | 27g |
| Weight with Enclosure | 69g |
