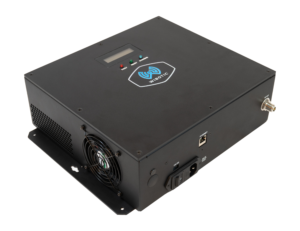

WiBotic transmitters (TRs) convert standard wall power into a wireless power signal for transmission to the robot. The TR-301 is WiBotic’s high-power Transmitter, with the ability to transmit up to 300W into a wide range of applications. Most often used for larger drones and mobile robots the TR-301 can be mounted on a wall (antenna mounted separately), used with WiBotic’s optional floor stand, or mounted inside a UAV landing pad. Its metal enclosure includes flanges for easy installation, an LCD display for system messages, LED indicator lights to show system status and a built-in Ethernet port. The standard TC-200 transmitter antenna (quoted separately) attaches via a short coaxial cable.
The TR-301 is typically paired with the OC-251, OC-262, or OC-301 Onboard Chargers. OC-150 Onboard Chargers can also be used but will be limited to that model’s 150W max power level.
| Input Voltage | 90-264V AC (DC versions also available) |
| Input Receptacle | IEC320-C14 |
| Input Frequency | 50-60Hz |
| TR Enclosure Type | Metal with ABS Plastic Lid |
| Data Port | Ethernet (RJ45) |
| Enclosure Dimensions | 12.6″ x 11.4″ x 4.4″ (320mm x 290mm x 112mm) |
| Power Delivery | Up to 300W to the battery with higher power OCs |
