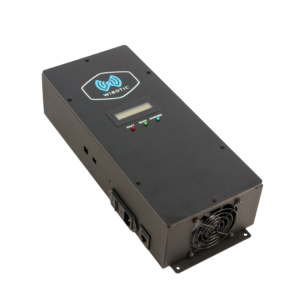

WiBotic transmitters (TRs) convert standard wall power into a wireless power signal for transmission to the robot. The TR-110 is WiBotic’s Transmitter for applications requiring up to 125W of power delivered to the battery or load. Shipped in a standard powder coated metal enclosure, the TR-110 also has flanges for easy wall mounting, an LCD display for system messages, and LED indicator lights to show system status. The standard TC-200 transmitter antenna attaches via a short coaxial cable and is mounted separately. A built-in Ethernet port allows external systems to monitor and control the transmitter using WiBotic’s browser-based Control Panel or APIs.
The TR-110 currently supports the OC-110 and OC-210 Onboard Chargers.
| Input Voltage | 90-264V AC (DC versions also available) |
| Input Receptacle | IEC320-C14 |
| Input Frequency | 50-60Hz |
| TR Enclosure Type | Metal with ABS Plastic Lid |
| Data Port | Ethernet (RJ45) |
| Enclosure Dimensions | 14.8″ x 6.4″ x 3.7″ (375mm x 162mm x 94mm) |
| Power Delivery | Up to 125W to the battery |
